Meridian™ PLUS Computer Kits

With Probe(s) for Fryers

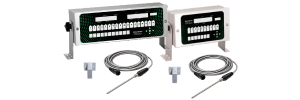

Meridian 10 & 18 Kits - TransP - 500 x 300
KitchenEssentials Heading

Advanced Cook & Hold Timing with Real-Time Temperature Visibility

The Meridian Series Computer Kit by Kitchen Brains® combines the Meridian Timer PLUS functionality with integrated temperature monitoring hardware, delivering a complete, ready-to-install cooking, holding, and temperature monitoring solution.

Built on the Meridian Series Computer platform, the Computer Kit includes one or two temperature probes and required mounting hardware, allowing operators to monitor appliance temperatures out of the box—without sourcing accessories separately.

Like the Meridian Timer PLUS, the Meridian Computer Kit supports up to three programmable action alarms per product key and multi-key hold time linking, making it ideal for complex cooking workflows and high-volume kitchens.

Designed for use with either gas or electric appliances, the Meridian Computer Kit provides flexible customization while maintaining the familiar, easy-to-use Meridian interface. This turnkey approach simplifies installation, accelerates deployment, and ensures consistent cooking performance from day one.

Available in 10-product, single-display or 18-product, dual-display configurations, the Meridian Series Computer Kit is the ideal solution for operations that need advanced timing, real-time temperature monitoring, and PLUS-level performance in one complete package.

Meridian Computer Kits also support optional compatibility with KorrectProduction® kitchen management software, enabling HACCP reporting, data tracking, and real-time online kitchen visibility for compliance-driven and performance-focused operations.

Questions & Ordering

Product Information & Manuals
Meridian 10 & 18 Kits - TransP - 500 x 300

Meridian PLUS Computer Kit Features:

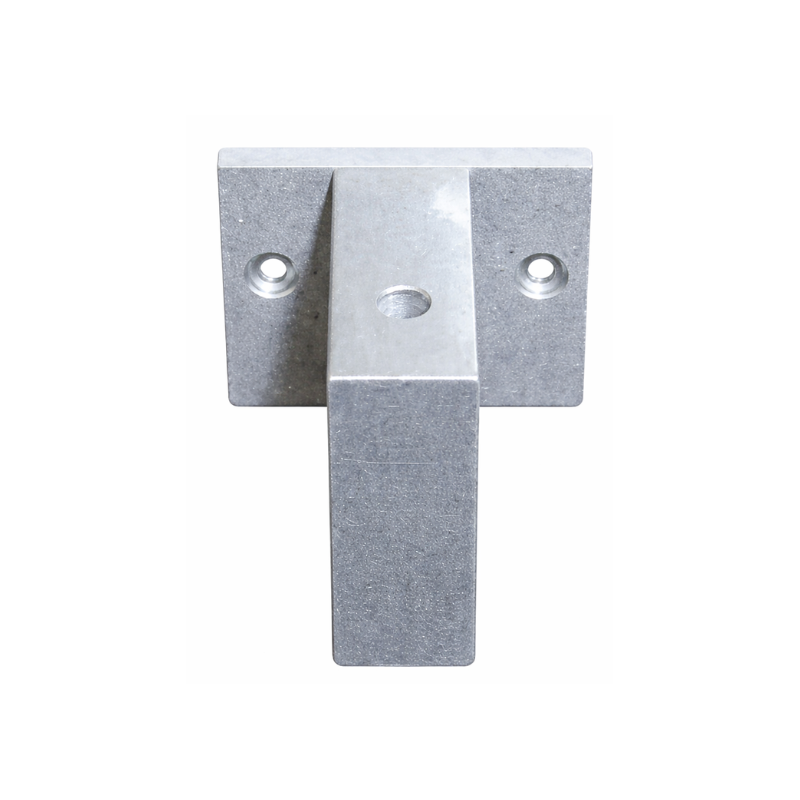

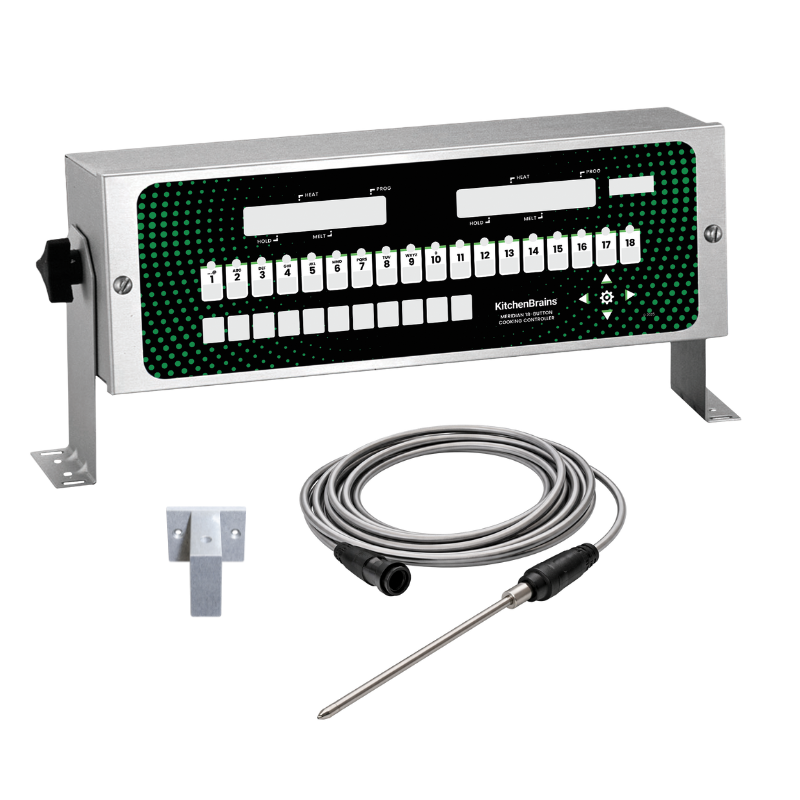

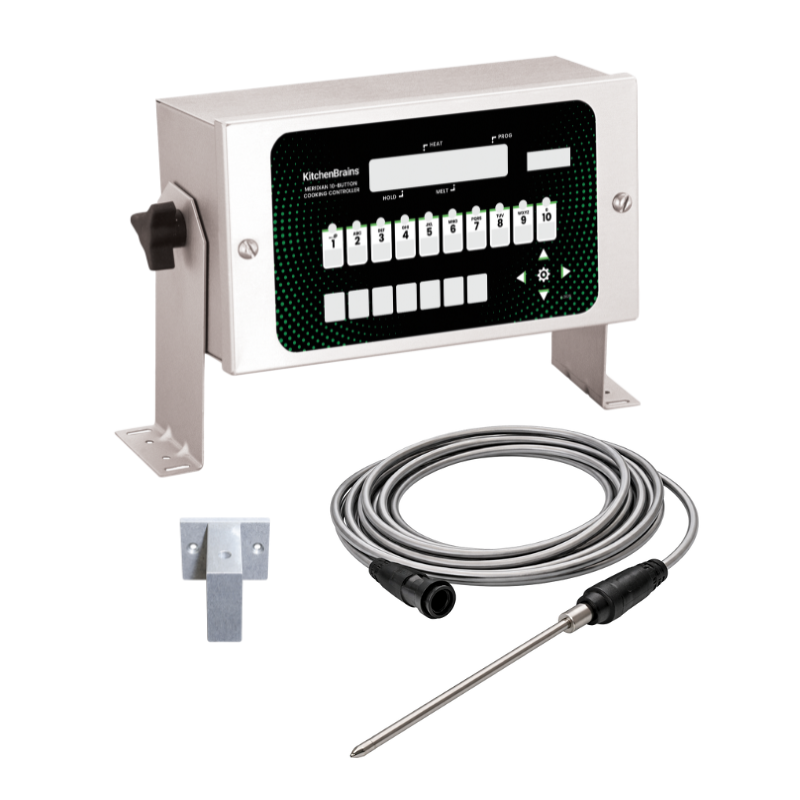

Includes: Computer with Meridian PLUS, 1 or 2 Probe(s), and Probe Mounting Hardware

Fryer Support: Gas OR Electric

Configurations: Available in 10 product keys with a single display, or 18 product keys with dual displays.

PLUS-Level Performance: Supports up to three programmable action alarms per product key and multi-key hold time linking for advanced cooking workflows.

Action Alarms: Alerts staff to perform a recipe step at a pre-programmed time.

Programmable Hold Time Linking: Multiple product keys can be linked to a single hold timer for quality tracking.

Automatic Least Time Display: Displays which product has the least hold time remaining to help prioritize service.

Replaceable Menu: Quickly update menus and functions for seasonal items or daypart changes.

Durable Construction: Aluminum chassis and membrane keypad rated for 5 million cycles.

KorrectProduction Compatible: Supports HACCP reporting, data tracking, and real-time visibility.

Choose the Right Timer — From Proven Essentials to Advanced Performance

Zap Timers (300 x 100 px)
Zap Timer

The single-function, multi-product ZAP Timers offer quality control and can be used with any appliance or menu type.

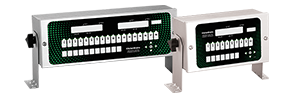

Meridian Timers (300 x 100 px)
Meridian Timer

The multi-function, multi-product Meridian Timers offer quality control and can be used with any appliance type.

Tracker Timer (300 x 100 px)
Tracker Timer

The multi-function, multi-display Tracker Timers are available in configurations for grilling, frying, holding, and oven use.

TT-700 (300 x 100 px)
<span style="text-transform: uppercase;">TT-700 Timer</span>

COMING SOON - The modern, multi-function, multi-product TT-700 Timer features a 7" touchscreen and advanced features.

Meridian Probe-Driven Benefits for Smarter Kitchen Control

Consistent Product Quality: Regardless of load or start temperature, probe sensing guarantees every batch cooks perfectly.

Ensure Food Safety: Hold timers tied to probe-verified cook cycles prevent serving expired or unsafe product.

Easy Training and Operation: Probe automation minimizes operator error and simplifies staff training.

Reliable, Low-Maintenance Design: Durable, solid-state probes never need recalibration, ensuring uptime and longevity.

Restaurant Challenges Solved by Meridian's Probe Technology

Inconsistent Cook Results

Manual timing can’t account for varying appliance conditions. The Meridian’s real-time probe feedback ensures precise and consistent cooking every cycle.

Food Safety Risks

Improper cooking or holding times expose food to unsafe temperatures. The probe-driven system continuously verifies internal conditions to maintain HACCP compliance.

Training Difficulties

New employees can quickly master operations thanks to intuitive mobile phone-style programming and probe automation, reducing reliance on manual judgment.



Appliance Variability

Different appliances perform differently — but the Meridian probe system automatically compensates for appliance efficiency or load differences.



Maintenance Downtime

Probes are solid-state and maintenance-free. Even if one fails, the "Backup Timer Mode" keeps your kitchen running without interruption.

Menu Expansion

Easily program 10 product keys with individualized probe-based cook profiles for rotating or limited-time menus.

Frequently Asked Questions

Here’s what customers usually ask about this product—if you don’t see your question, contact us anytime.

Meridian 10 Product Freestanding Computer

Specifications

Input Voltage: 120VAC ±10% (.33A) or 240VAC ±10% (.167A), 50/60Hz

Power Consumption: 40 VA max

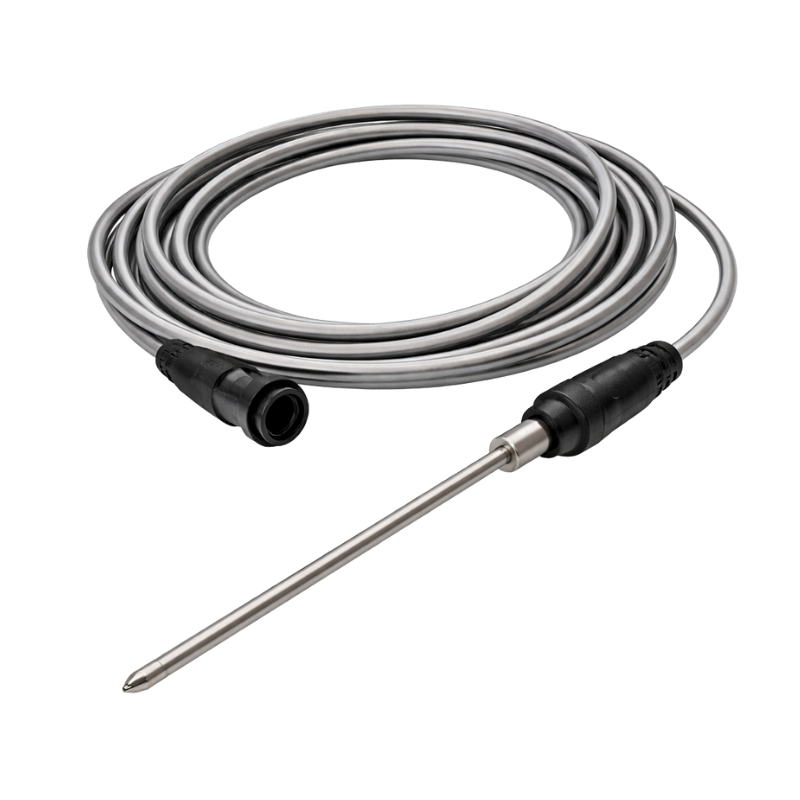

Temperature Inputs: 1 or 2 thermistor probes with 72" armored cables

Probe Type: Thermistor, real-time sensing for automatic compensation

Display: 14-segment, 8-character LED

Programming: Predictive text interface

Temperature Range: 32–550°F (0–287.7°C)

Temperature Accuracy: ±5°F / °C

Action Alarms: 3 programmable per key

Operating Conditions: Up to 158°F (70°C), 90% RH non-condensing

Construction: .060 aluminum front panel, .040 aluminum chassis

Keypad Life: 5 million cycles

Compliance: RoHS, CE, ETL

Dimensions: 11.31" W × 7.85" D × 5.44" H (287.18 × 200.84 × 138.15 mm)

Shipping Weight: Approx. 8 lbs (3.7 kg)

Meridian Computer Kits Model Numbers:

10ELECMERIDIAN1 - 10 Product Buttons, 1 Probe

10ELECMERIDIAN2 - 10 Product Buttons, 2 Probes

18ELECMERIDIAN1 - 18 Product Buttons, 1 Probe

18ELECMERIDIAN2 - 18 Product Buttons, 2 Probes

10GASMERIDIAN1 - 10 Product Buttons, 1 Probe

10GASMERIDIAN2 - 10 Product Buttons, 2 Probes

18GASMERIDIAN1 - 18 Product Buttons, 1 Probe

18GASMERIDIAN2 - 18 Product Buttons, 2 Probes

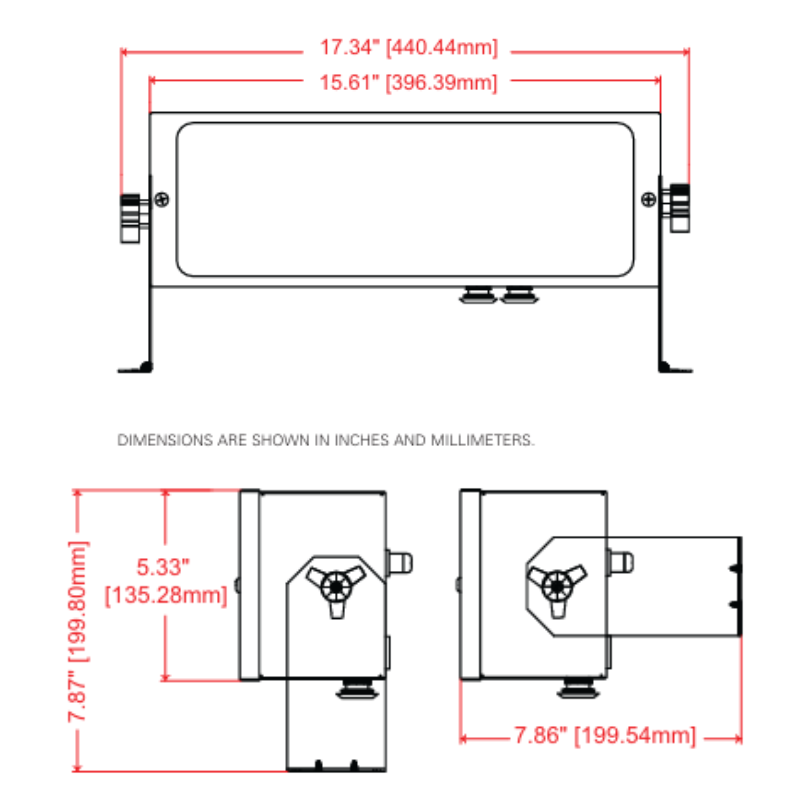

Meridian 18 Schematic
