Meridian™ Computer

Computer with Probe Port(s)

Meridian Computer
KitchenEssentials Heading

Monitor Cook Time, Hold Time, and Temperature by Appliance Type

The Meridian Series Computer by Kitchen Brains® combines the proven cook and hold timer functionality of the Meridian Timer with optional temperature monitoring through one or two probe ports. Designed for operators who need both precise timing and appliance-specific temperature visibility, the Meridian Computer supports consistent food quality and safer fryer operation.

This compensating cooking computer offers flexible customization of temperature monitoring, with probes and mounting accessories sold separately and available for either gas or electric appliances. This modular approach allows operators to add exactly the level of monitoring they need—without paying for unnecessary hardware.

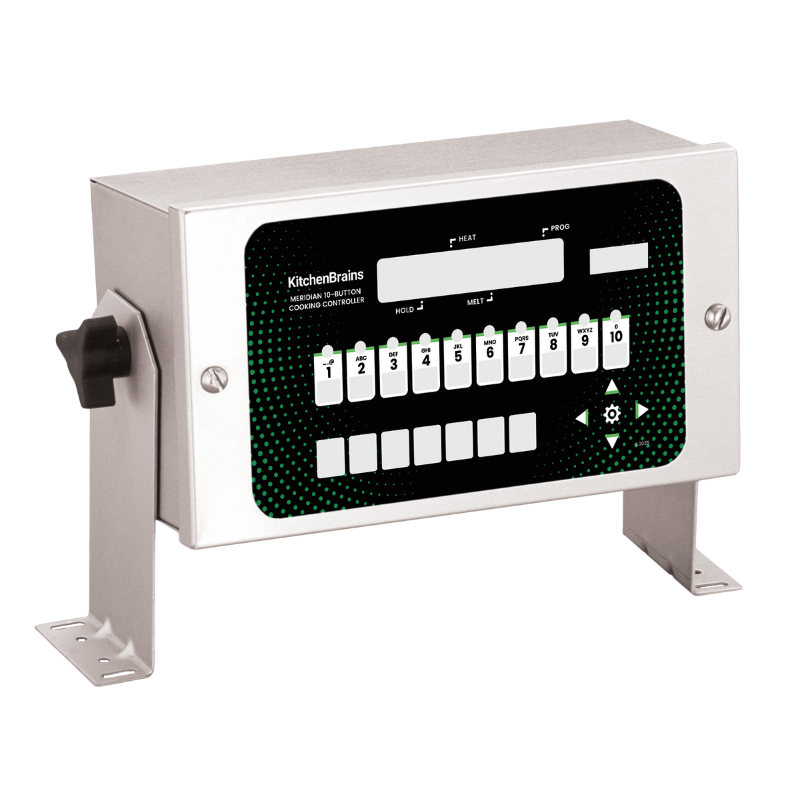

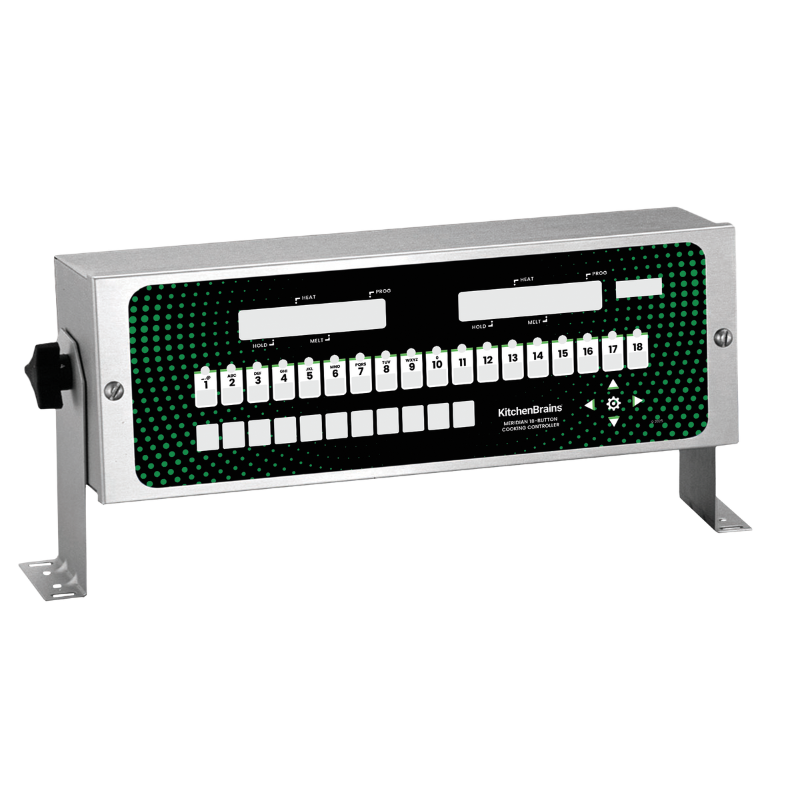

Available in 10-product, single-display (MEC-110) or 18-product, dual-display (MEC-118) configurations, the Meridian Series Computer is an ideal solution for kitchens looking to expand beyond timers into real-time fryer temperature awareness, while maintaining the familiar, easy-to-use Meridian interface and workflow.

Meridian Computers also support optional compatibility with KorrectProduction® kitchen management software, enabling HACCP reporting, data tracking, and real-time online management—an ideal upgrade for operations focused on food safety compliance, automation, and performance visibility.



Questions & Ordering

Product Information & Manuals

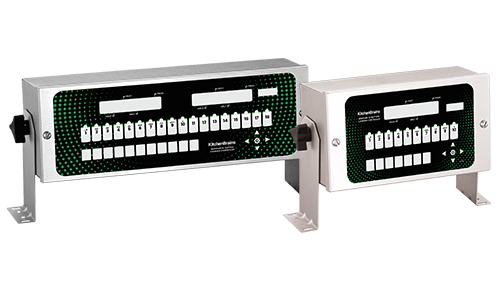

Meridian Timer Series500x300

Meridian Compensating Cooking Computer Features

Configurations: Available in 10 product keys with a single display, or 18 product keys with dual displays.

Probe Support: Choose 1 or 2 probe ports (probes sold separately) to track temperature for up to two appliances.

Action Alarms: Program one alarm per product key to alert staff to perform a recipe step at a pre-programmed time.

Programmable Hold Time Linking: One product key can be linked to a hold timer for accurate quality tracking.

Dual Probe Support: Monitor up to two vats or appliances simultaneously for multi-unit operations.

Automatic Least Time Display: Shows which product has the least time remaining to prioritize service.

Replaceable Menu: Easily update menus and functions for seasonal items or daypart changes.

Durable Construction: Aluminum chassis with a membrane keypad rated for 5 million cycles.

KorrectProduction Compatible (Optional): Enables HACCP reporting, production data tracking, and real-time visibility.

Choose the Right Timer — From Proven Essentials to Advanced Performance

Zap Timers (300 x 100 px)
Zap Timer

The single-function, multi-product ZAP Timers offer quality control and can be used with any appliance or menu type.

Meridian Timers (300 x 100 px)
Meridian Timer

The multi-function, multi-product Meridian Timers offer quality control and can be used with any appliance type.

Tracker Timer (300 x 100 px)
Tracker Timer

The multi-function, multi-display Tracker Timers are available in configurations for grilling, frying, holding, and oven use.

TT-700 (300 x 100 px)
<span style="text-transform: uppercase;">TT-700 Timer</span>

COMING SOON - The modern, multi-function, multi-product TT-700 Timer features a 7" touchscreen and advanced features.

Benefits of Meridian Computers with Probe Ports

Customizable Temperature Monitoring: Choose probe ports and types to meet unique monitoring needs.

Consistent Food Quality: Every batch cooks with precision through adaptive timing and optional probe feedback.

Reduced Downtime: Reliable solid-state components and field-replaceable menu strips minimize maintenance.

Operational Flexibility: Programmable for a variety of appliances, menu items, and daypart changes.

Restaurant Challenges the Meridian Computer Solves

Inconsistent Cooking

The Meridian computer's optional probes monitor fryer temperature in real-time, eliminating undercooked or overdone food.

Training Complexity

Easy-to-use programming through a mobile phone style interface makes training fast and intuitive, even for new employees.

Food Safety

Precise cook and hold times paired with action alarms ensure food is cooked to the perfect temperature and only served while fresh.

Workflow Bottlenecks

10 or 18 programmable product keys with a linked hold timer streamlines fryer operations and speeds up service.

Equipment Downtime

Solid-state construction and user-replaceable components minimize service calls and downtime.

Menu Flexibility

Quickly update recipes and action alarms for daypart menu changes or seasonal Limited Time Offerings (LTOs.)

Frequently Asked Questions

Here’s what customers usually ask about this product—if you don’t see your question, contact us anytime.

Meridian Cooking Computer

Specifications

Input Voltage: 24VAC ±10%, 50/60Hz

Power Consumption: 40 VA max.

Temperature Inputs: Up to two 1K RTD or 91K thermistor probes

Digital Inputs: Four 24VDC (e.g., door or load switches)

Outputs: Up to eight 24VDC relay drivers; one PWM output (10K/20KHz)

Temperature Range: 32–550°F (0–287.7°C)

Temperature Accuracy: ±5°F / °C

Display: 14-segment, 8-character LED; red indicator lights per product key

Keypad Life: 5 million cycles

Environmental Conditions: Up to 158°F (70°C), 95% non-condensing humidity

Shipping Weight: Approx. 3 lbs (1.4 kg)

Dimensions (EU/US): 246.4 mm W × 137.2 mm H × 36.8 mm D (9.7 × 5.4 × 1.45 in)

Meridian Computer Part Numbers:

CM1-60211-01:  10  Buttons, Single-Display, 1 Probe Port

CM2-60211-04: 10 Buttons, Single-Display, 2 Probe Ports

CX1-60221-03: 18 Buttons, Dual-Display, 1 Probe Port

CX2-60221-01: 18 Buttons, Dual-Display, 2 Probe Ports

Accessory Part Numbers:

140-50030-04: Electric Probe

140-50032-03: Gas Probe

213-50038: Gas Fryer Probe Mount

213-10429: Electric Fryer Probe Mount

Meridian 10 Timer Schematic
