Enhance Safety and Save Energy with Advanced Door Monitoring

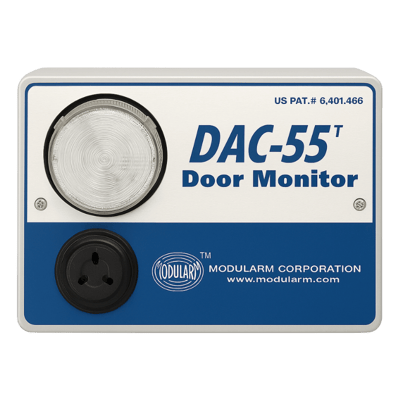

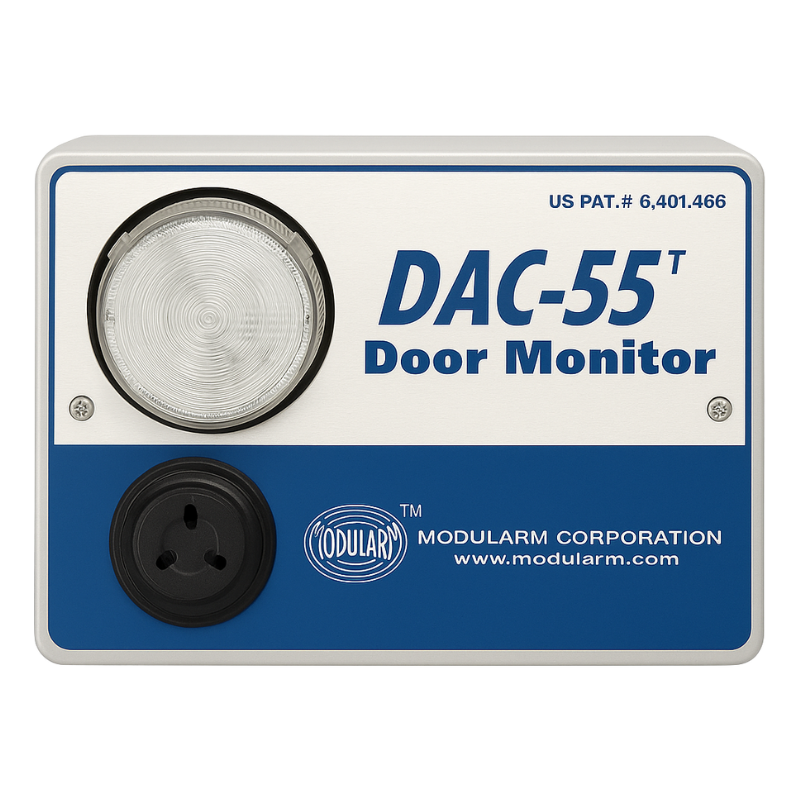

The Modularm® DAC-55™ is a robust refrigerator and freezer door alarm and monitoring system engineered for OEMs who need reliability, efficiency, and safety in commercial kitchen environments.
Designed for walk-in coolers and freezers, the DAC-55 not only provides visual and audible alarms to ensure doors are not left ajar but also integrates seamlessly with refrigeration systems.
This unit actively reduces coil icing, improves energy efficiency, lowers maintenance costs, and protects stored products by maintaining proper temperatures. For enhanced safety, the DAC-55 supports an optional IP-1 Illuminated Pushbutton that doubles as a panic/entrapment alarm for personnel working inside compartments.
With user-selectable configurations, field-adjustable alarm delays, and automatic control of lights, fans, and solenoids, the DAC-55 replaces conventional switches and transforms walk-in cooler/freezer safety and energy management.
ETL-listed and tested in leading retail chains, it is a proven solution for OEMs requiring durability, compliance, and long-term value.
Questions & Ordering

Contact Us
Click to Send Inquiry
Buy Now
Click to Order OnlineProduct Information & Manuals
Product/Spec Sheet
Click To DownloadCase Study
Click to DownloadInstallation Guide
Click To DownloadComparison Chart
Click To Download
Modularm® DAC-55™ Door Alarm Monitor Features
Visual & Audible Alerts: Built-in strobe light and alarm provide immediate notification when doors are left open.
Remote Notification: Alarm relay enables integration with energy management or remote monitoring systems.
Refrigeration Control: Automatic fan and solenoid shutoff with user-selectable timing reduces energy waste and equipment wear.
Entrapment Safety: Optional add-on IP-1 Pushbutton provides panic/entrapment alarms for personnel protection.
Lighting Automation: Automatically controls compartment lights, eliminating the need for separate switches.
Field-Adjustable Settings: Door ajar delay (5–45 minutes) and refrigeration shutoff pre-delay (1–120 seconds) to match manufacturer application needs.
ETL Listed: Safety and performance compliance for commercial refrigeration applications.
Optional Accessories & Compatible Products
The 75LCT Touchscreen Multi-Monitor safeguards perishables with alarms for temperature fluctuations, power outages, and door-ajar.
The 75LC Multi-Monitor for walk-in coolers & freezers saves energy & maintenance costs, protects perishables, and increases operator safety.
The IP-1 Illuminated Push Button Panic/Entrapment Alarm provides light control and auto-panic from inside the unit to ensure employee safety.
Benefits of the DAC-55™ Door Alarm Monitor
Lower Energy Costs: Reduces compressor run-time and unnecessary light usage.
Improved Product Integrity: Maintains consistent temperatures, minimizing spoilage and ensuring consistency.
Reduced Maintenance: Decreases coil icing and system wear for longer equipment life.
Faster ROI: Case studies show dramatic reductions in door-open hours, leading to measurable cost savings.
Challenges the DAC-55™ Helps Solve
Energy Waste
Doors left ajar lead to skyrocketing energy costs. The DAC-55 reduces open-door time by up to 85% in pilot tests, directly lowering utility bills.
Coil Icing
Uncontrolled airflow causes icing and downtime. The DAC-55 reduces icing by managing fans and solenoids during door-open conditions.
Equipment Wear
Excessive compressor cycling shortens equipment life. Adjustable refrigeration shutoff delays reduce unnecessary cycling and increase lifespan.
Frequently Asked Questions
Modularm® DAC-55™
-
What is the difference between the DAC-55 and DL-35?
The DAC-55 includes all features of the DL-35 plus refrigeration system control (fans and solenoids) for energy optimization.
-
Can the DAC-55 monitor multiple doors?
Yes, additional low-voltage magnetic contacts can be added to monitor multiple doors.
-
What happens if power is lost?
The DAC-55 automatically restores lights and refrigeration after power returns, ensuring continuous operation.
-
Is the DAC-55 compatible with the IP-1 Pushbutton?
Yes, the DAC-55 integrates with the IP-1 for panic and entrapment safety alarms.
-
How is the door ajar delay set?
The alarm delay is field adjustable from 5 to 45 minutes via DIP switch settings.

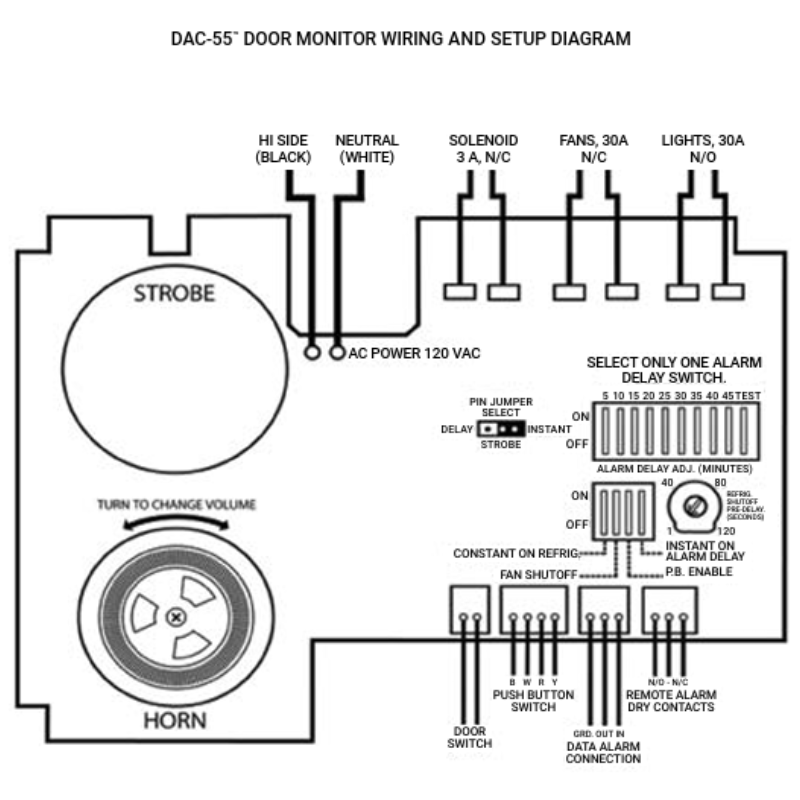

Specifications
Dimensions: 8” L x 6” W x 1.8” D
Power Supply: 120 VAC/60 Hz @ 90mA max (surge protected); other voltages available
Ambient Temperature: -10°C to 52°C (14°F to 126°F)
Cable Length: 30m max
Fan Contacts: N/O, 30A @ 120/240 VAC
Solenoid Contacts: N/C, 3A @ 120/240 VAC
Light Contacts: N/O, 30A @ 120/240 VAC
Alarm Contacts: N/O & N/C, 1A @ 12 VDC
Audible Alarm: Piezo horn, ~100 dB @ 30cm
Visual Alarm: Strobe light
Alarm Delay: Door ajar adjustable 5–45 min; refrigeration shutoff pre-delay 1–120 sec
Compliance: ETL Listed (UL Std 464A / CSA C22.2 No. 205)
