Mustang Thermostat

Precision Temperature Control

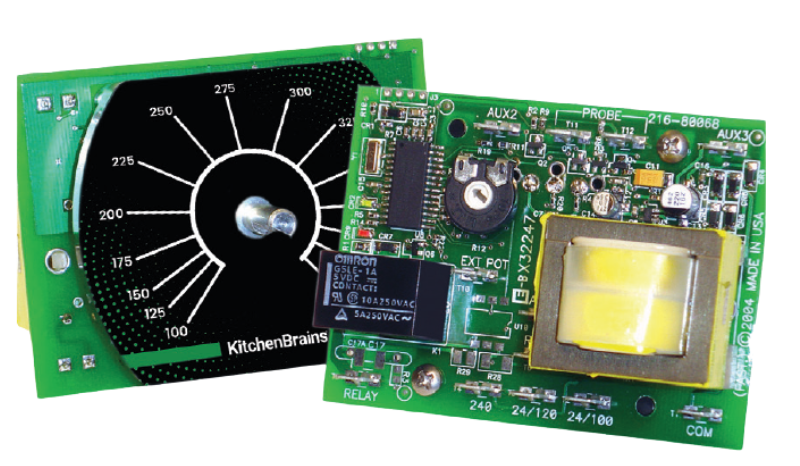

Mustang Thermostat Composite
KitchenEssentials Heading

High Performance, Cost-Effective Temperature Control

The Mustang Thermostat is a high-performance, cost-effective temperature control solution designed for various commercial kitchen appliances, including fryers, ovens, and holding cabinets.

This advanced thermostat leverages a long-life microprocessor for precise temperature control and features a compact design for easy integration. Key features include DIP switch configurability to reduce SKUs, EU60730 compliance, and the ability to connect to IoT dashboards (using an optional LoRa wireless module and gateway).

With its intuitive interface, robust construction, and advanced features, the Mustang Thermostat empowers OEMs to enhance appliance performance, reduce manufacturing costs, and improve customer satisfaction.

Product Information & Manual

Product/Spec Sheet

Click To Download

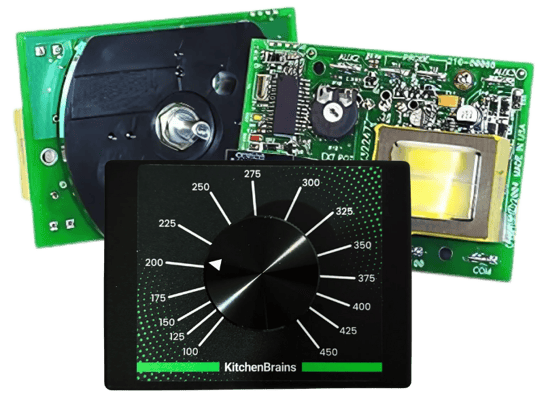

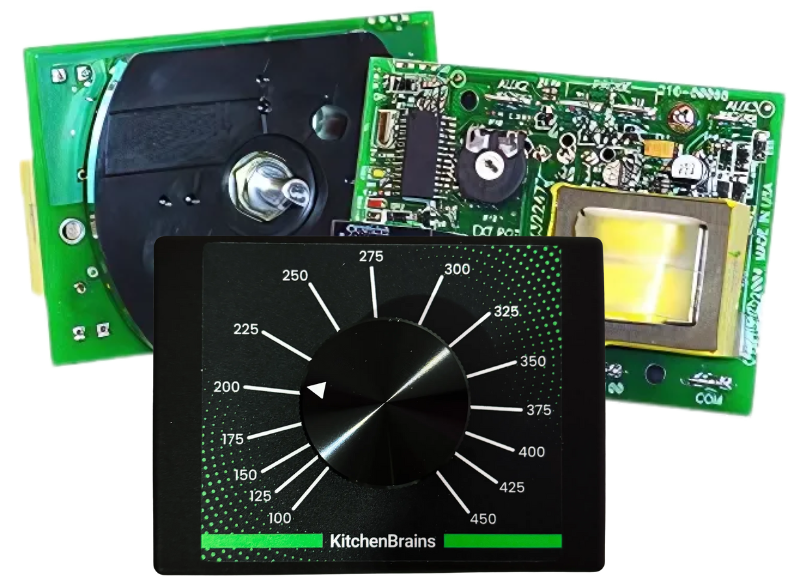

Mustang Composite

Smart Features for Precision, Savings, and Reliability

  • Precise Microprocessor Control – Long-life, non-mechanical design delivers superior temperature accuracy and reliability.
  • Configurable Performance – Supports on/off, melt cycle, special proportioning, duty cycle options, and both local/remote adjustments.
  • IoT-Ready – Optional LoRa module enables remote monitoring, data capture, and predictive maintenance.
  • Customizable & Cost-Efficient – DIP switches and software scaling reduce SKUs, simplify production, and lower inventory costs.
  • Compact, Space-Saving Design – Fits easily into appliances and streamlines manufacturing and installation.
  • Service-Friendly – Onboard diagnostic LEDs and offset temperature pot enable quick troubleshooting and easy field adjustments.
  • High-Durability Performance – Reliable operation in ambient temperatures up to 158°F (70°C) using robust SMT components.
  • Compliant & Sustainable – Meets EU60730 safety standards and RoHS environmental requirements.

Smart Temperature Control That Cuts Costs

Innovative Temperature Control Design:  Non-mechanical,  microprocessor-based temperature control provides superior accuracy and reliability, with the ability to connect to IoT dashboards, enabling advanced remote monitoring and control.

Streamlines Manufacturing & Reduces Costs:  Streamlines manufacturing and reduces costs through a cost-effective design that simplifies production, lowers the SKU count, and enhances serviceability with simplified field adjustments, thereby minimizing downtime and service calls.

Improved Customer Satisfaction:  Accurate and reliable temperature control ensures consistent food quality and enhances the overall user experience with improved reliability that enhances customer satisfaction and brand loyalty.

Thermostat Innovation For Flexibility & Performance

Innovative Thermostat Technology

Long-life microprocessors provide precise temperature control and accuracy with superior performance and reliability compared to traditional mechanical thermostats.

Connects to IoT dashboards (using an optional LoRa wireless module and gateway), enabling remote monitoring, data collection, and predictive maintenance.

 Configurable for on/off, melt cycle, or special proportioning needs to meet diverse application requirements.

 Duty cycle option — user controls temperature rate increase.

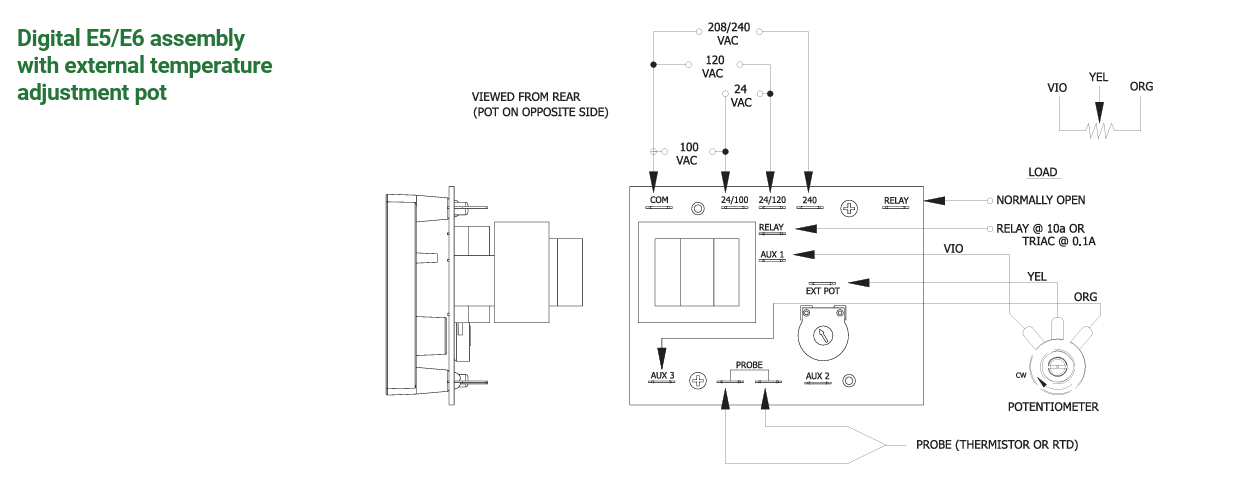

 Local or remote temperature adjustment (thermistor and RTD sensors).

Flexibility & Cost Optimization

DIP switch configurability simplifies customization and reduces SKU count, streamlining inventory and logistics.

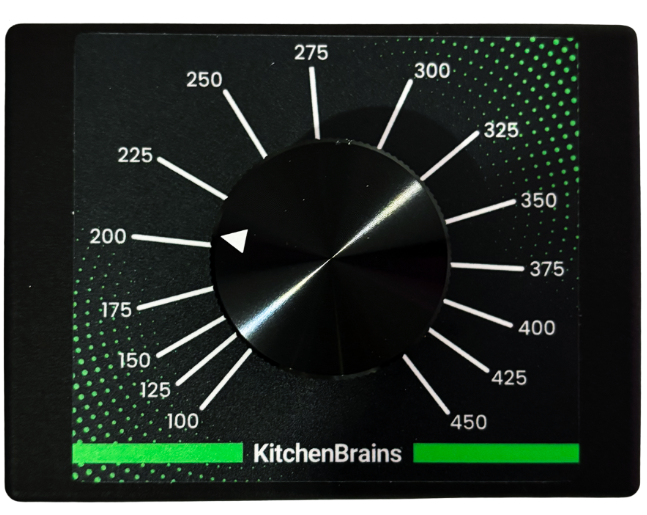

 Easy-to-use dial setpoint simplifies production and reduces assembly time.

 New scales created via software eliminate the need for costly hardware redesigns.

Tab-selectable supply voltage reduces SKU count and inventory costs.

Compact footprint saves valuable space within the appliance, optimizing manufacturing and installation processes.

Performance & Reliability

Onboard diagnostic LEDs enhance field service effectiveness by providing valuable troubleshooting information.

 Dependable SMT devices minimize downtime and do not require recalibration.

The offset temperature pot for easy field adjustments reduces the need for service technicians.

158°F (70°C) ambient temperature rating for reliable operation in demanding kitchen environments.



Versatility

Mounting footprint compatible with popular mechanical thermostats

Compatible with a wide range of appliances, including fryers, ovens, holding cabinets, and more.

Safety & Compliance

EU60730 compliance ensures safety and adherence to industry standards.

 RoHS compliance reduces hazardous substances and meets all domestic and international standards.

SPECIFICATIONS


  • Input Voltage: Frequency: 24, 100, 120, 208, 240VAC; 50/60 HZ; 0.250 inch  tab selectable
  • Power Consumption: Less than 1.4VA
  • Temp Probe (Analog) Inputs:  Single input
    • e5: Thermistor (30K, 91K, 100K Ohm, factory programmable)
    • e6: 1K Ohm RTD
  • Outputs / Type, One or the Other: 24-240VAC @ 10 A SPST relay, life - 100,000 cycles OR 24-265VAC @100 ma triac
  • Temp Control Range: Preprogrammed from 60-660°F (15.5- 348.8°C)
  • Temp. Offset: +/- 20°F (-6.6°C)  (onboard pot)
  • Temperature Control Type: ON/OFF
  • Hysteresis: -3° to 0°F (-19.4 to -17.7°C)
  • Temperature Accuracy: 3% of range • User Interface: Setpoint adjustment pot
  • Diagnostics: (2) tri-color diagnostic LEDs  on back of board
  • Noise Spike Protection: 4000 volt minimum (on timers and all properly installed controls)
  • Environmental Operating Conditions: Ambient 158°F/70°C, 95% noncondensing humidity 70ºC)

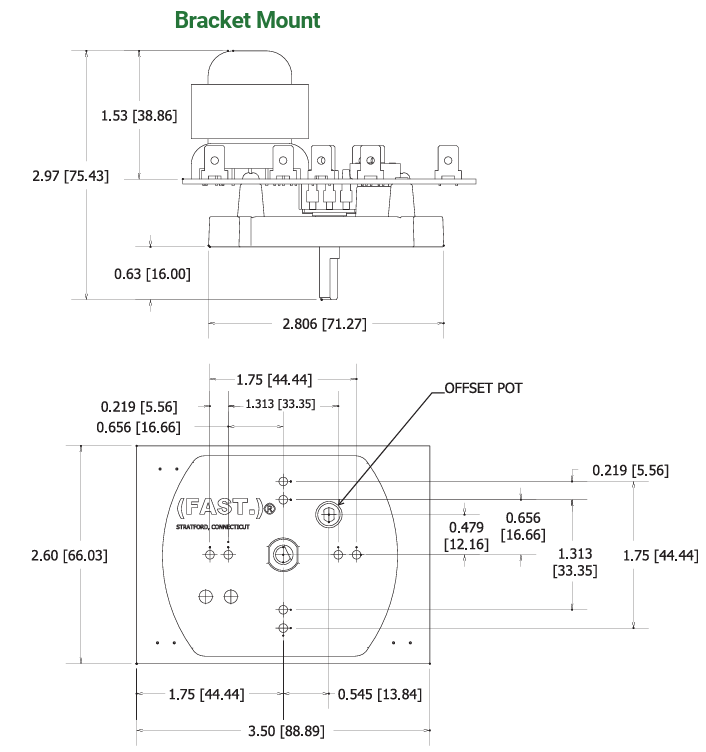

Mustang Bracket Mount Schematic
