Automated HACCP Compliance with Remote Alarm Monitoring

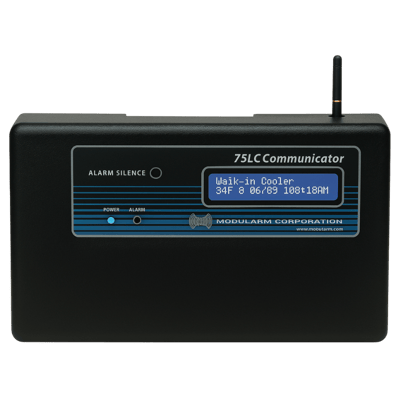

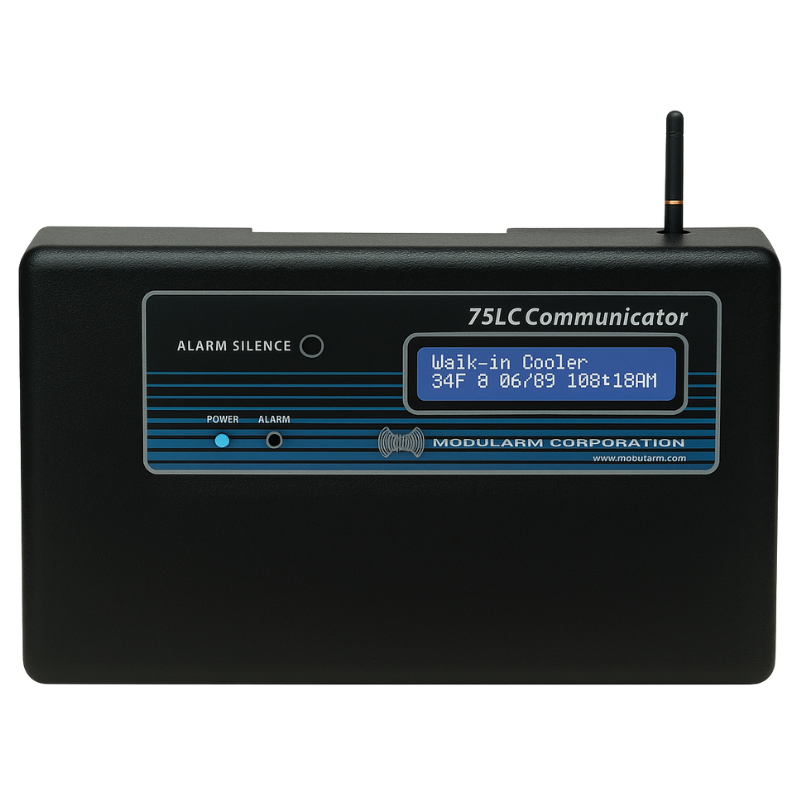

The MODULARM® 75LC Communicator from Kitchen Brains® is a compact, dedicated system server designed to streamline food safety monitoring across commercial kitchens. Engineered for OEM integration, this advanced communicator connects up to eight 75LC multi-monitors and sixteen additional MS-1 multi-sensors—either hardwired or via the optional 75LC Wireless Module.
By centrally mounting in locations such as a manager’s office, the 75LC Communicator links monitored devices to your network or the Internet, harvesting critical temperature and alarm data for HACCP compliance. It automatically generates historical reports, emailing them daily or weekly, while also delivering instant notifications via email, text, or optional telephone dialer whenever alarm conditions occur.
For OEMs, the 75LC Communicator offers a robust, web-based software platform that requires no installation, ensuring ease of setup, intuitive operation, and seamless integration with a wide range of monitored environments—from walk-ins to under-counter refrigeration.
Questions & Ordering

Contact Us
Click to Send InquiryProduct Information & Manuals
Product/Spec Sheet
Click To DownloadInstallation Guide
Click To Download
75LC Communicator Features that Improve Refrigeration Safety
Multi-Device Support: Monitors up to 8 75LC multi-monitors and 16 MS-1 wireless sensors.
Web-Based Software: Built-in, no installation required, intuitive, and easy to use.
Automated Reporting: Daily or weekly HACCP historical reports emailed automatically.
Reports: Generate reports with built-in graphing capability.
Remote Notifications: Automatic email and text alerts for alarm conditions from any location.
Snapshot Dashboard: View monitored conditions instantly.
Battery Backup: Rechargeable with built-in charging circuitry.
Voice Notification Ready: Compatible with optional automatic telephone dialer.
Secure Access: Password protection for data integrity.

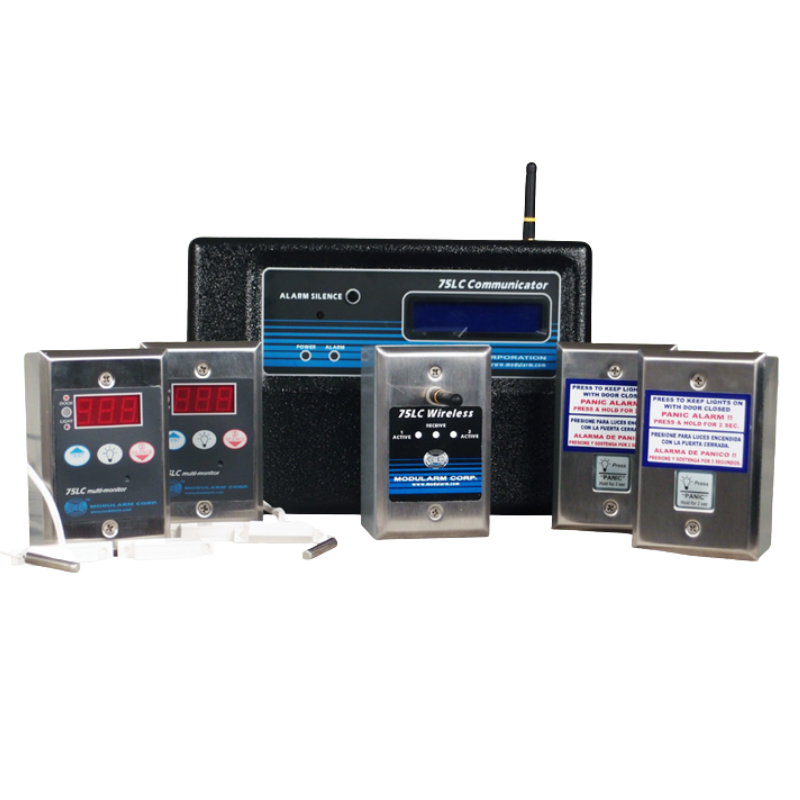

Optional Accessories & Compatible Products
The 75LCT Touchscreen Multi-Monitor prioritizes temperature management, energy efficiency, and safety with alarms for temperature fluctuations.
The 75LC Multi-Monitor is a physical interface temperature control for walk-in coolers & freezers with alarms for temperature fluctuations.
The IP-1 Illuminated Push Button Panic/Entrapment Alarm provides light control and auto-panic from the inside of cooler and freezer appliances.
Benefits of the Modularm® 75LC Communicator
Simplifies Compliance: Automates HACCP documentation and reporting.
Enhances Safety: Provides immediate automated alerts for alarms, even when you're not on-site.
Reduces Costs: Integrates multi-door lighting control to save energy.
Improves Reliability: Battery backup and redundant alarm pathways ensure monitoring continuity.
Manufacturer Ready: Compact, intuitive, and easily deployed for commercial refrigeration kitchen equipment.
Built to Solve Real-World Challenges
Food Safety
Meeting HACCP requirements can be time-consuming. The 75LC Communicator automates reporting and data logging, ensuring compliance without manual effort.
Remote Monitoring
Without real-time alerts, operators risk losses and liability. Email, text, and voice notifications ensure visibility at anytime, from anywhere.
Multi-Unit Management
OEMs supporting chain restaurants need scalable solutions. The 75LC Communicator supports multiple monitors and sensors across large operations.
Refrigeration Failures
Unplanned failures increase costs. With instant notifications for alarms like temperature or AC failure, the system enables proactive intervention.
Energy Management
Walk-in lighting is a hidden cost. Automatic, Energy Act compliant light control helps operators reduce unnecessary energy use.
Manual Reporting
Creating reports manually is labor-intensive. Automated email and web-based reports free staff to focus on food prep and service.
Frequently Asked Questions
Modularm 75LC Communicator
-
How many devices can the 75LC Communicator manage?
It supports up to eight 75LC multi-monitors and sixteen additional MS-1 wireless sensors.
-
What products are compatible with the 75LC Communicator?
-
75LC Multi-Monitor – Up to eight 75LCs can be connected, either hardwired or via the optional 75LC Wireless Module.
-

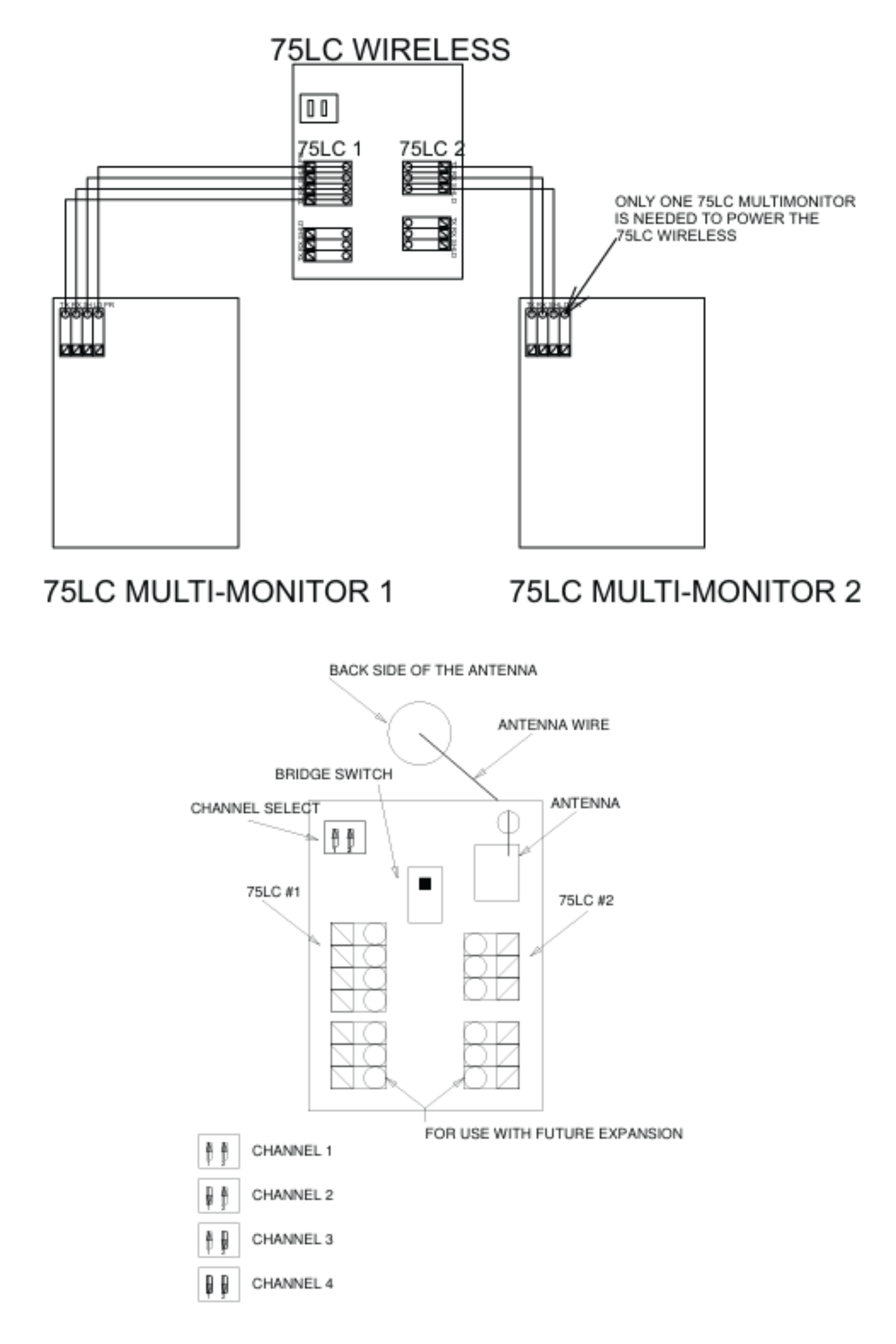

75LC Wireless Module – Provides wireless capability for one or two 75LC multi-monitors. It mounts above the walk-in door (surface or flush mount) and transmits data directly to the Communicator.
-
MS-1 Multi-Sensor – Up to sixteen MS-1 wireless sensors can be added. These can monitor temperature, humidity, door ajar, or panic alarm conditions, with each MS-1 able to accept multiple sensor types (e.g., up to 4 temperature sensors per MS-1)
-
-
How does it support HACCP compliance?
It automatically generates and emails daily or weekly historical reports, plus on-demand snapshot and graphical reports.
-
What happens during a power outage?
The built-in rechargeable battery backup maintains monitoring, alarms, and notifications during AC failures.
-
Can it notify managers offsite?
Yes, it provides email and text notifications, and with optional telephone dialer hardware, can deliver voice alerts.
Specifications
Dimensions: 10.25” W x 7” H x 2.75” D
Display: Built-in LCD display for system status

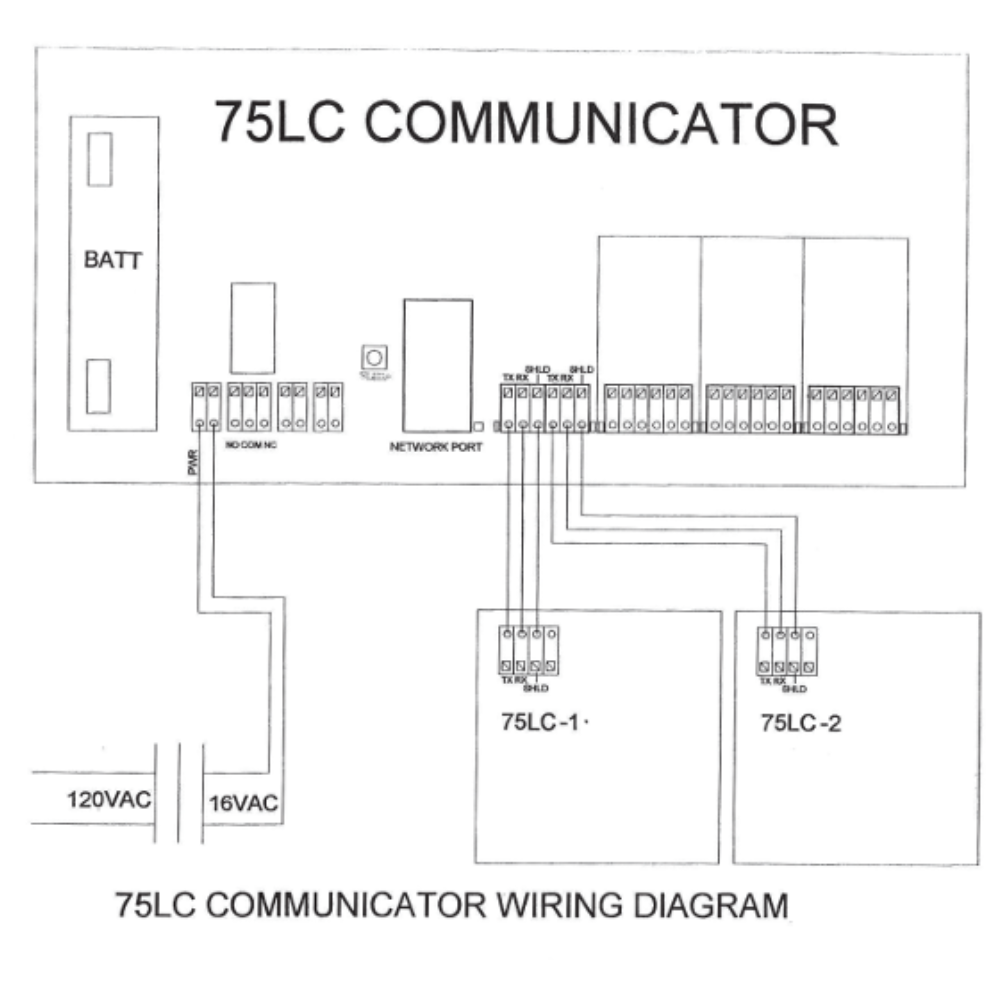

Power / Electrical:
- Operates on line voltage with a built-in transformer (no external transformer required)
- Includes built-in rechargeable battery backup with recharging circuitry
- Battery backup ensures alarms and notifications remain active during AC failure
Security: Password-protected
