Meridian Series

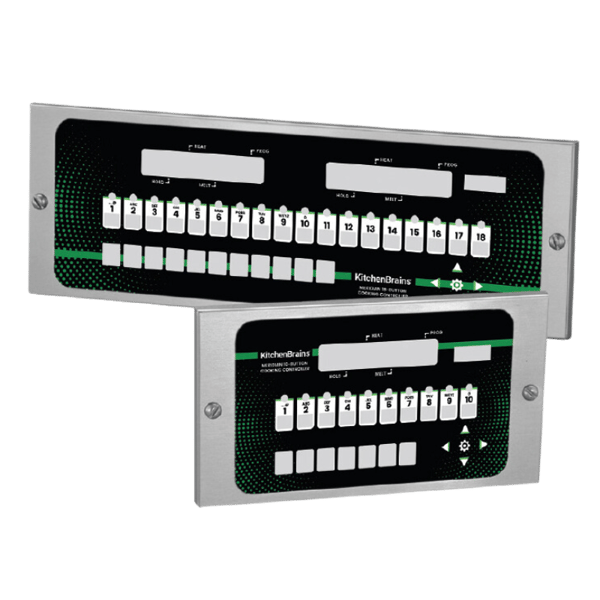

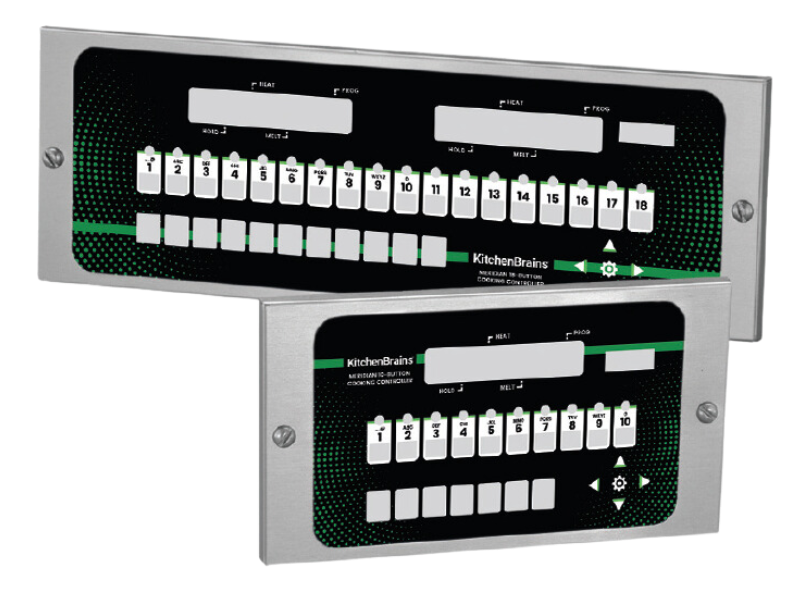

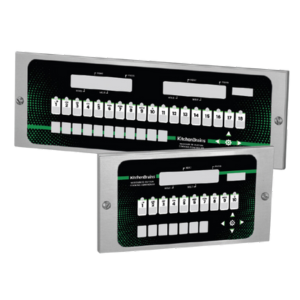

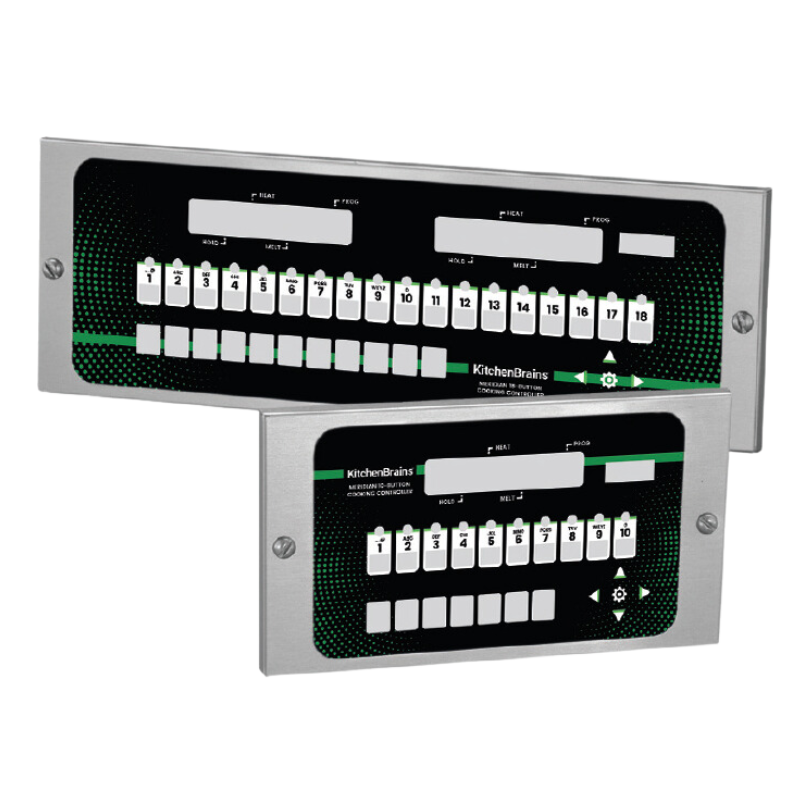

10 and 18 Product Embedded Cooking Controllers

OEM Meridian Series Custom Appliance Controllers
KitchenEssentials Heading

Enhance appliance manufacturing with custom cooking controls.

The Kitchen Brains® Meridian Process Controller Platform is a cutting-edge embedded control solution that elevates foodservice equipment performance.

Designed to be flexible for a wide range of applications, including grills, fryers, and ovens, the Meridian Timer Platform offers precise timing and control beyond simple on/off functionality.

Key features include intuitive interfaces and advanced capabilities, such as innovative compensating cooking techniques. These features not only enhance food quality and consistency but also streamline workflows and differentiate your appliances with smart technology.

By empowering appliance manufacturers with a superior and flexible control solution, the Meridian Timer helps you gain a competitive edge in the market.

Product Information & Manuals

Product/Spec Sheet

Click To Download

Operating Guide

Click to Download

Installation Guide

Click To Download
Meridian Custom Appliance Controls

Meridian Series Embedded Control Features

  • Available with 10 or 18 product keys and LED display

  • Flexible cooking modes with programmable action alarms and stage times

  • (FAST.Flex)™ timing compensates for load size, moisture, and temperature variations

  • (FAST.Nav)™ intuitive keypad for easy programming

  • User-selectable product and action alarms with customizable naming libraries

  • Programmable filter lockout and hold-time management to ensure food quality

  • Supports various appliances gas, electric, and more

  • Energy-saving setback mode with automatic temperature adjustments

  • RoHS compliant, ETL and CE certified

  • Optional HACCP connectivity

Meridian Series Platform Benefits for Manufacturers

Reduced Development Costs: Pre-engineered and proven control platforms streamline manufacturer integration.

Enhanced Product Differentiation: Equip appliances with advanced features and smart cooking intelligence.

Improved Customer Satisfaction: Ensure reliable performance, consistent results, and simplified operation for end-users.

Versatility Across Appliances: Designed for fryers, ovens, grills, holding units, and more.

Lower Support Costs: Reliable design and robust troubleshooting minimize service calls.

Challenges Embedded Meridian Controls Solves For

Consistency in Food Quality

Maintaining taste, texture, and doneness across high-volume service can be difficult. Meridian controllers use (FAST.Flex)™ technology to automatically adjust cook times based on load conditions, ensuring consistent, high-quality results.

Complex Appliance Integration

Manufacturers face challenges when designing controls for different appliances. Meridian controllers support gas, electric, and multiple appliance configurations with software-selectable settings, simplifying design integration.

Energy Inefficiency

Energy regulations and operational costs drive the need for efficient equipment. The Meridian setback mode lowers oil or appliance temperature during idle times, reducing energy use without compromising readiness.



End User Onboarding

Training staff on complex equipment is time-consuming. With (FAST.Nav)™ intuitive programming and replaceable menu strips, restaurant operators and end-users can easily program, adjust, and monitor cooking cycles.

Food Safety & Compliance

Operators must meet HACCP and safety requirements. With optional connectivity, Meridian controllers enable HACCP data collection and compliance integration into kitchen management systems.

High Support Costs

Frequent service calls can increase OEM costs. Meridian’s reliable construction, customizable alarms, and troubleshooting functions reduce downtime and minimize costly support interventions.

Frequently Asked Questions

Here’s what customers usually ask about this product—if you don’t see your question, contact us anytime.

Meridian Series Embedded Controls

Specifications

  • Models: MEC-110 (10 keys), MEC-118 (18 keys)

  • Input Voltage: 24VAC ±10%, 50/60Hz

  • Power Consumption: 40 VA max

  • Temperature Control Range: 32–550°F (0–287.7°C); offset ±20°F

  • Temperature Accuracy: ±5°F or °C

  • Probe Inputs: Up to two (1K RTD or 91K thermistor)

  • Digital Inputs: (4) 24VDC digital inputs (switches, product load inputs)

  • Outputs: Up to eight 24VDC relay drivers, plus one PWM output (10K/20KHz)

  • Membrane Keypad Life: 5 million cycles

  • Operating Conditions: Ambient 158°F (70°C), 95% non-condensing humidity

  • Audible Output: Piezo, 95dB at 5 ft (1.5m)

  • Weight: Approx. 3 lbs. (10-key) / 10 lbs. (18-key)

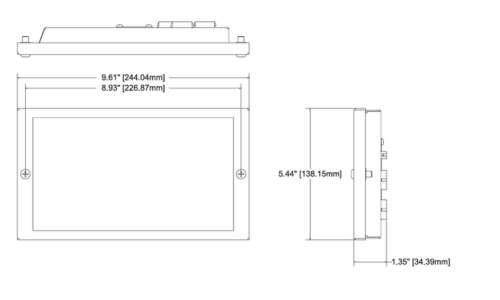

Meridian Series 10 Button Controller Schematic
