MCT Series

Scalable Multi-Channel Embedded Timer Controls

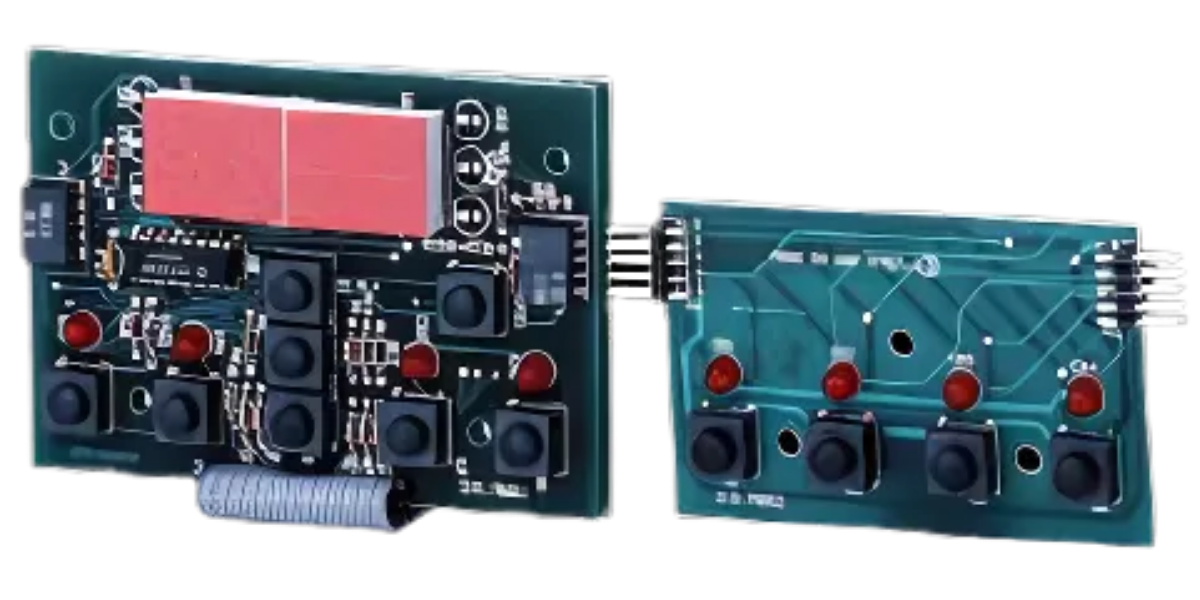

Kitchen Brains MCT Series OEM Control Timer
KitchenEssentials Heading

Maximize Precision and Minimize Complexity

 The MCT Series offers OEM appliance manufacturers a cost-effective, scalable solution for integrating multi-channel timers into commercial kitchen equipment.

Available in 4-, 8-, and 12-channel configurations, these programmable timer boards eliminate complex point-to-point wiring, cut down inventory SKUs, and streamline assembly.

Built for durability and precision, the MCT Series delivers high-visibility LED displays, simple programming, and flexible voltage options—making it a smart choice for appliance innovation and efficiency.



Product Information & Manuals

Product/Spec Sheet

Click To Download
Kitchen Brains MCT Series OEM Control Timer

Smarter OEM Controls

  • Options from 4, 8, or 12 independent timing cycle keys
  • Minimize variant SKUs with selectable voltage input options 120 VAC or 240 VAC
  • Easily store and update recipes for unique cooking procedures
  • Eliminates point-to-point wiring, reducing assembly time and labor costs
  • LED displays in Hours/Minutes or Minutes/Seconds format
  • Status indicator ranks products by the amount of time left and audible Piezo - 95db alarms can be heard from over 5ft away
  • Operable in environmental conditions  with ambient temperature 158°F/70°C and 95% noncondensing humidity
  • Unique on-appliance installation with optional power supply to support international voltage requirements

One Embedded Control, Endless Benefits

Increase Profits: Eliminate the need to purchase stand-alone timers by increasing appliance value with embedded controls.

Kitchen Tough: Robust design with safe materials ensures long-term reliability and is RoHS compliant.

Save Time: Microprocessor-based accuracy enhances reliability and eliminates any need for recalibration.

Easy to Use: Intuitive end user interface minimizes support and training needs.

Custom Kitchen Controls for OEMs and Operators

Drive Appliance Innovation

Eliminate the need for your customers to purchase stand-alone timers by embedding the control directly into your appliance.

These reliable value-priced timer board offers a lower cost of ownership when compared to stand-alone timers which increased end user value and higher product margins.

Reduce Support Requests

Built with electronic precision and durability, there is no need for recalibration.

Optional power supplies support US and International voltage requirements, reducing product support requests.

Save Time & Money

Reduced labor costs by eliminating point-to-point wiring.

Single, multi-configurable control and selectable voltage reduces SKUs and simplifies inventory management and costs.



Frequently Asked Questions

Here’s what customers usually ask about this product—if you don’t see your question, contact us anytime.

MCT Series Embedded Controls

SPECIFICATIONS

  • Input Voltage: 120 or 240VAC +/- 10%, 50/60 HZ, 0.250 inch tab selectable
  • Power Consumption: 2.4VA
  • Audible Output Devices: Piezo - 95db at 5 Feet (1.51 meters) NOTE: All Keys Rated for 10 million cycles
  • LED’s life rating: 50,000 Hours
  • User Interface (Base Unit)
    • (4) - 7 Segment Red LED displays
    • (4) Red Product LED’s
    • (1) Scan Key
    • (4) Product Keys
  • Programming Keys: (3) Program, Up Arrow, Down Arrow
  • Daughter Boards: (2) Max can be used
    • (4) Product LED's
    • (4) Product Keys
  • Display Range Time: 0 to 99 Hours
  • Time Display: HH:MIN to MIN:SEC
  • Noise Spike Protection: 4000 Volt Minimum (on timers and all properly installed controls)
  • Environmental Operating Conditions: Ambient 158°F/70°C, 95% noncondensing humidity
  • Weight: Approx. .5 lb. (0.22 Kg)



Kitchen Brains MCT Series Timer 12-Channel Schematic for Recommended Sheet Metal Cut Out.
Kitchen Brains MCT Series 8-Channel Schematic for Recommended Sheet Metal Cut Out.
