MAC-813

Multi-Function Appliance Controller

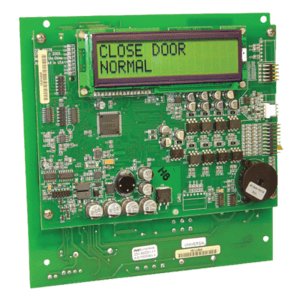

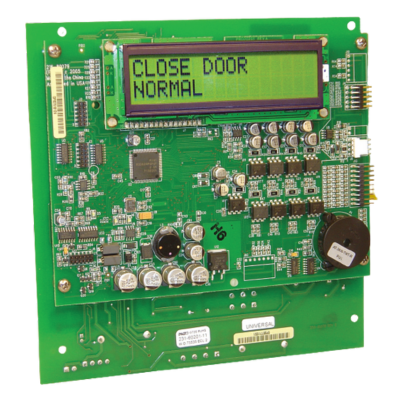

MAC-813 Embedded Control for Commercial Appliances
KitchenEssentials Heading

Reliable multi-process control for demanding commercial appliances.

The Kitchen Brains® MAC-813 Multi-Process Control is engineered for manufacturers seeking a highly reliable, configurable, and cost-effective solution to manage complex commercial kitchen and industrial appliances.

Designed with advanced solid-state technology, the MAC-813 streamlines manufacturing, reduces the number of SKUs, and supports multiple appliance platforms with minimal reconfiguration.

Its intuitive interface, large LCD, and robust diagnostic capabilities reduce support costs and training time, while extending appliance life.

With extensive input/output capacity and built-in flexibility, the MAC-813 enables commercial kitchen appliance manufacturers to deliver superior appliances with embedded controls that enable food quality, safety, and consistency.

Popular Appliance Applications:

  • Automated Product Dispensing and Packaging
  • Post Mix Dispensing Equipment
  • Grills
  • Broilers
  • Fryers/Ovens
  • Microwave, Combi, and Conveyor Ovens
  • Waste Disposal / Pulpers
  • Warewasher

Product Information & Manuals

Product/Spec Sheet

Click To Download
MAC-813 Embedded Control for Commercial Appliances

MAC-813 Multi-Process Control Features

  • Energy-saving functions, including setback, and SMS (Service Maintenance Scheduling).

  • AST.Edit® software with built-in diagnostics for service troubleshooting.

  • Software-selectable multiple appliance configurations and tuning parameters.

  • Programmable duty cycle flexibility for time, temperature, motors, solenoids, pumps, actuators, detergent dispensing, and more.

  • On-board PWM output for motor control.

  • Multi-character and multilingual LCD display

  • Triac outputs for long switch life in demanding environments.

  • RoHS compliant, meeting all domestic and international standards.

Benefits of the MAC-813 for Appliance Manufacturers

Simplifies Manufacturing: Reduces SKUs and wiring requirements for streamlined appliance assembly.

Lowers Support Costs: FAST.Edit® software and diagnostics speed up troubleshooting and service.

Extends Appliance Life: Solid-state design withstands harsh kitchen environments.

Enhances Food Quality: Consistent, precise control of multi-process cooking applications.

Improves Operator Experience: Large LCD and intuitive messaging reduce training time and minimize crew errors.

MAC-813 Helps OEMs Overcome These Challenges

Complex Appliance Control

Manufacturers face increasing demand for appliances that manage multiple processes. The MAC-813 consolidates functions such as time, temperature, motor control, and detergent dispensing into one flexible platform.

Manufacturing Inefficiencies

Reducing SKUs and simplifying wiring lowers assembly costs. The MAC-813 allows appliance manufacturers to design for cost-effective, scalable manufacturing.

High Service Costs

The embedded MAC-813 control features built-in diagnostics and FAST.Edit® reconfiguration. This shortens service times and reduces support costs.

Short Appliance Lifespan

Mechanical controls wear quickly in demanding environments such as commercial kitchens. The MAC-813’s durable, solid-state design ensures longer product life and reliability.

Usability Challenges

End-user errors cost restaurant operators time and money. The MAC-813’s large LCD, intuitive messaging, and multilingual support simplify training and minimize mistakes.

Food Consistency Issues

Consistency is critical in foodservice. The MAC-813 ensures precise temperature and process control, enhancing food quality and customer satisfaction.



Frequently Asked Questions

Here’s what customers usually ask about this product—if you don’t see your question, contact us anytime.

MAC-813 Controller

Specifications

  • Input Voltage: 24 VAC (±10%) 50/60Hz or 24 VDC (±10%)
  • Power Consumption: 40 VA
  • Inputs: (3) 10K thermistor probes; (5) optically isolated 24VDC digital inputs
  • Outputs: (10) Triac outputs, (1) PWM, (2) 24VDC relay drivers
  • Audible Device: Piezo buzzer
  • Temp Control Range: 40–560°F (4.4–288°C); Accuracy ±5°F/C
  • Temp Display Range: 32–560°F (0–293.3°C)
  • Display: Multi-character LCD
  • Optional Keypad: 16-button membrane keypad, 5M cycle rating for all keys
  • Noise Protection: 4000V minimum
  • Operating Conditions: 40–157°F (4–70°C), 95% non-condensing humidity
  • Weight: 1 lb. (0.45 kg)

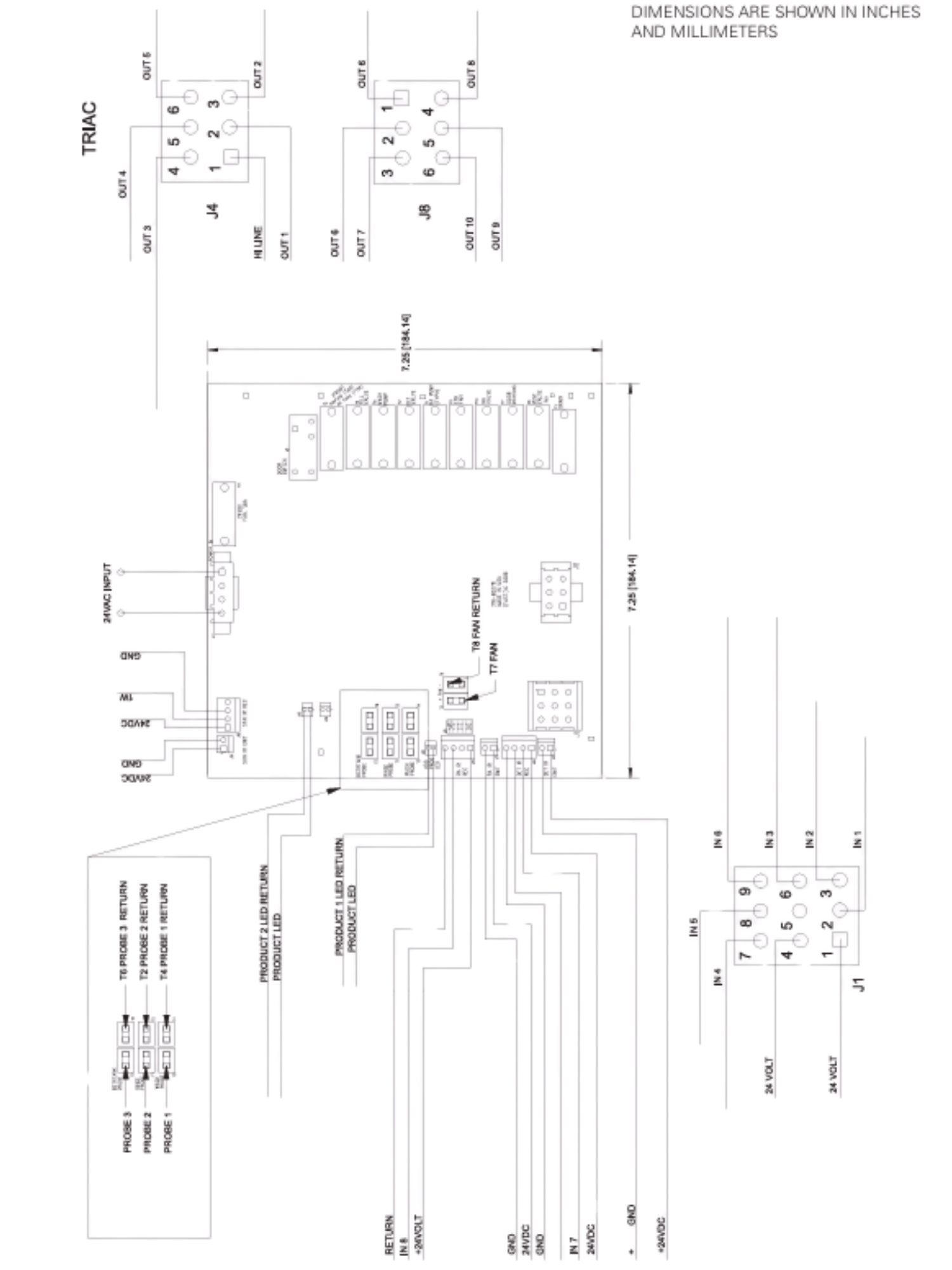

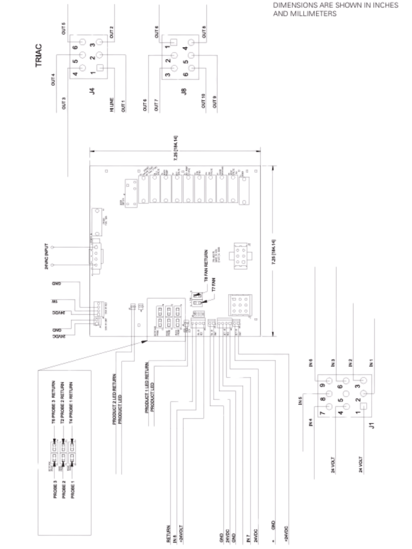

MAC-813 Schematic
